Ejemplos usando el Api de windows para Visual basic

156 - Commondialog de imprimir y configurar página

Volver al Listado Api - Anterior - Siguiente

Ejemplo que permite abrir dichos cuadro de diálogo usando el Api de windows

El ejemplo permite abrir el diálogo de imprimir :

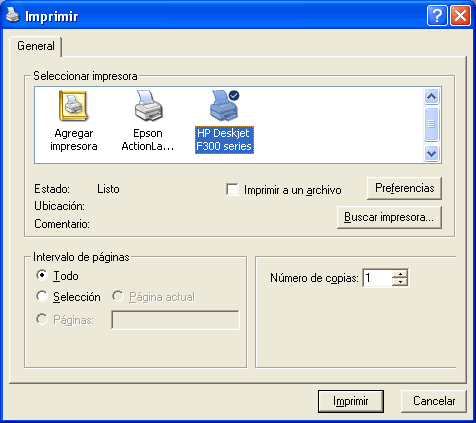

cuadro de dialogo de imprimir pagina

y el de configurar página :

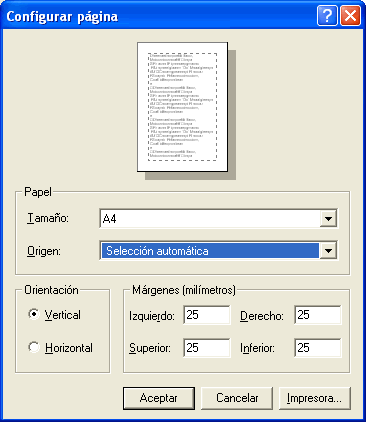

vista del commondialogo para configuracion de página

Controles

Colocar en un proyecto un módulo bas.
En el formulario agregar dos Commandbutton.El Commnad1 muestra el cuadro de diálogo para Imprimir y el Command2 el de Configurar página.

Código fuente en el módulo bas:

Option Explicit 'Constantes Const CCHDEVICENAME = 32 Const CCHFORMNAME = 32 Const DM_DUPLEX = &H1000& Const DM_ORIENTATION = &H1& Const PD_PRINTSETUP = &H40 Const GMEM_MOVEABLE = &H2 Const GMEM_ZEROINIT = &H40 Const PD_DISABLEPRINTTOFILE = &H80000 'Funciones API Private Declare Function PrintDialog Lib "comdlg32.dll" Alias "PrintDlgA" ( _ pPrintdlg As PRINTDLG_TYPE) As Long Private Declare Function PAGESETUPDLG Lib "comdlg32.dll" Alias "PageSetupDlgA" ( _ pPagesetupdlg As PAGESETUPDLG) As Long Private Declare Function GlobalLock Lib "kernel32" ( _ ByVal hMem As Long) As Long Private Declare Function GlobalUnlock Lib "kernel32" (ByVal hMem As Long) As Long Private Declare Function GlobalAlloc Lib "kernel32" ( _ ByVal wFlags As Long, _ ByVal dwBytes As Long) As Long Private Declare Function GlobalFree Lib "kernel32" (ByVal hMem As Long) As Long Private Declare Sub CopyMemory Lib "kernel32" Alias "RtlMoveMemory" ( _ hpvDest As Any, _ hpvSource As Any, _ ByVal cbCopy As Long) ' UDT Private Type POINTAPI x As Long y As Long End Type Private Type RECT Left As Long Top As Long Right As Long Bottom As Long End Type Private Type PAGESETUPDLG lStructSize As Long hwndOwner As Long hDevMode As Long hDevNames As Long Flags As Long ptPaperSize As POINTAPI rtMinMargin As RECT rtMargin As RECT hInstance As Long lCustData As Long lpfnPageSetupHook As Long lpfnPagePaintHook As Long lpPageSetupTemplateName As String hPageSetupTemplate As Long End Type Private Type PRINTDLG_TYPE lStructSize As Long hwndOwner As Long hDevMode As Long hDevNames As Long hDC As Long Flags As Long nFromPage As Integer nToPage As Integer nMinPage As Integer nMaxPage As Integer nCopies As Integer hInstance As Long lCustData As Long lpfnPrintHook As Long lpfnSetupHook As Long lpPrintTemplateName As String lpSetupTemplateName As String hPrintTemplate As Long hSetupTemplate As Long End Type Private Type DEVNAMES_TYPE wDriverOffset As Integer wDeviceOffset As Integer wOutputOffset As Integer wDefault As Integer extra As String * 100 End Type Private Type DEVMODE_TYPE dmDeviceName As String * CCHDEVICENAME dmSpecVersion As Integer dmDriverVersion As Integer dmSize As Integer dmDriverExtra As Integer dmFields As Long dmOrientation As Integer dmPaperSize As Integer dmPaperLength As Integer dmPaperWidth As Integer dmScale As Integer dmCopies As Integer dmDefaultSource As Integer dmPrintQuality As Integer dmColor As Integer dmDuplex As Integer dmYResolution As Integer dmTTOption As Integer dmCollate As Integer dmFormName As String * CCHFORMNAME dmUnusedPadding As Integer dmBitsPerPel As Integer dmPelsWidth As Long dmPelsHeight As Long dmDisplayFlags As Long dmDisplayFrequency As Long End Type 'Fin de declaraciones '---------------------------------- ' función Para el Common diálogo de Configurar página '--------------------------------------------------------- Function Configuarar_Pagina(HwndForm As Long) As Long Dim T_Configurar_Pagina As PAGESETUPDLG With T_Configurar_Pagina .lStructSize = Len(T_Configurar_Pagina) .hwndOwner = HwndForm .hInstance = App.hInstance .Flags = 0 End With If PAGESETUPDLG(T_Configurar_Pagina) Then Configuarar_Pagina = 0 Else Configuarar_Pagina = -1 End If End Function 'Para el Common diálogo de imprimir ( pasar el formulario como parámetro ) '--------------------------------------------------------- Public Sub Show_Printer(El_Formulario As Form, Optional Flags As Long) On Error GoTo ErrSub Dim t_Printer As PRINTDLG_TYPE Dim DevMode As DEVMODE_TYPE Dim DevName As DEVNAMES_TYPE Dim lpDevMode As Long, lpDevName As Long Dim bReturn As Integer Dim objPrinter As Printer, NewPrinterName As String With t_Printer .lStructSize = Len(t_Printer) .hwndOwner = El_Formulario.hWnd .Flags = Flags End With On Error Resume Next DevMode.dmDeviceName = Printer.DeviceName DevMode.dmSize = Len(DevMode) DevMode.dmFields = DM_ORIENTATION Or DM_DUPLEX DevMode.dmPaperWidth = Printer.Width DevMode.dmOrientation = Printer.Orientation DevMode.dmPaperSize = Printer.PaperSize DevMode.dmDuplex = Printer.Duplex On Error GoTo 0 t_Printer.hDevMode = GlobalAlloc(GMEM_MOVEABLE Or GMEM_ZEROINIT, Len(DevMode)) lpDevMode = GlobalLock(t_Printer.hDevMode) If lpDevMode > 0 Then CopyMemory ByVal lpDevMode, DevMode, Len(DevMode) bReturn = GlobalUnlock(t_Printer.hDevMode) End If With DevName .wDriverOffset = 8 .wDeviceOffset = .wDriverOffset + 1 + Len(Printer.DriverName) .wOutputOffset = .wDeviceOffset + 1 + Len(Printer.Port) .wDefault = 0 End With With Printer DevName.extra = .DriverName & Chr(0) & .DeviceName & Chr(0) & .Port & Chr(0) End With t_Printer.hDevNames = GlobalAlloc(GMEM_MOVEABLE Or GMEM_ZEROINIT, Len(DevName)) lpDevName = GlobalLock(t_Printer.hDevNames) If lpDevName > 0 Then CopyMemory ByVal lpDevName, DevName, Len(DevName) bReturn = GlobalUnlock(lpDevName) End If If PrintDialog(t_Printer) <> 0 Then lpDevName = GlobalLock(t_Printer.hDevNames) CopyMemory DevName, ByVal lpDevName, 45 bReturn = GlobalUnlock(lpDevName) GlobalFree t_Printer.hDevNames lpDevMode = GlobalLock(t_Printer.hDevMode) CopyMemory DevMode, ByVal lpDevMode, Len(DevMode) bReturn = GlobalUnlock(t_Printer.hDevMode) GlobalFree t_Printer.hDevMode NewPrinterName = UCase$(Left(DevMode.dmDeviceName, _ InStr(DevMode.dmDeviceName, Chr$(0)) - 1)) If Printer.DeviceName <> NewPrinterName Then For Each objPrinter In Printers If UCase$(objPrinter.DeviceName) = NewPrinterName Then Set Printer = objPrinter End If Next End If On Error Resume Next With Printer .PaperSize = DevMode.dmPaperSize .PrintQuality = DevMode.dmPrintQuality .ColorMode = DevMode.dmColor .PaperBin = DevMode.dmDefaultSource .Copies = DevMode.dmCopies .Duplex = DevMode.dmDuplex .Orientation = DevMode.dmOrientation End With On Error GoTo 0 End If Exit Sub ErrSub: If Err.Number = 484 Then MsgBox "Error al obtener información de la impresora." & _ "Asegurarse que está instalada correctamente.", vbCritical End If End Sub

Código fuente en el formulario

Option Explicit 'Abre el Diálogo Imprimir Private Sub Command1_Click() Call Show_Printer(Me) End Sub ' Abre el Diálogo de Configurar página Private Sub Command2_Click() Call Configuarar_Pagina(Me.hWnd) End Sub Private Sub Form_Load() Command1.Caption = " Show Printer " Command2.Caption = " Configuarar Pagina " End Sub
